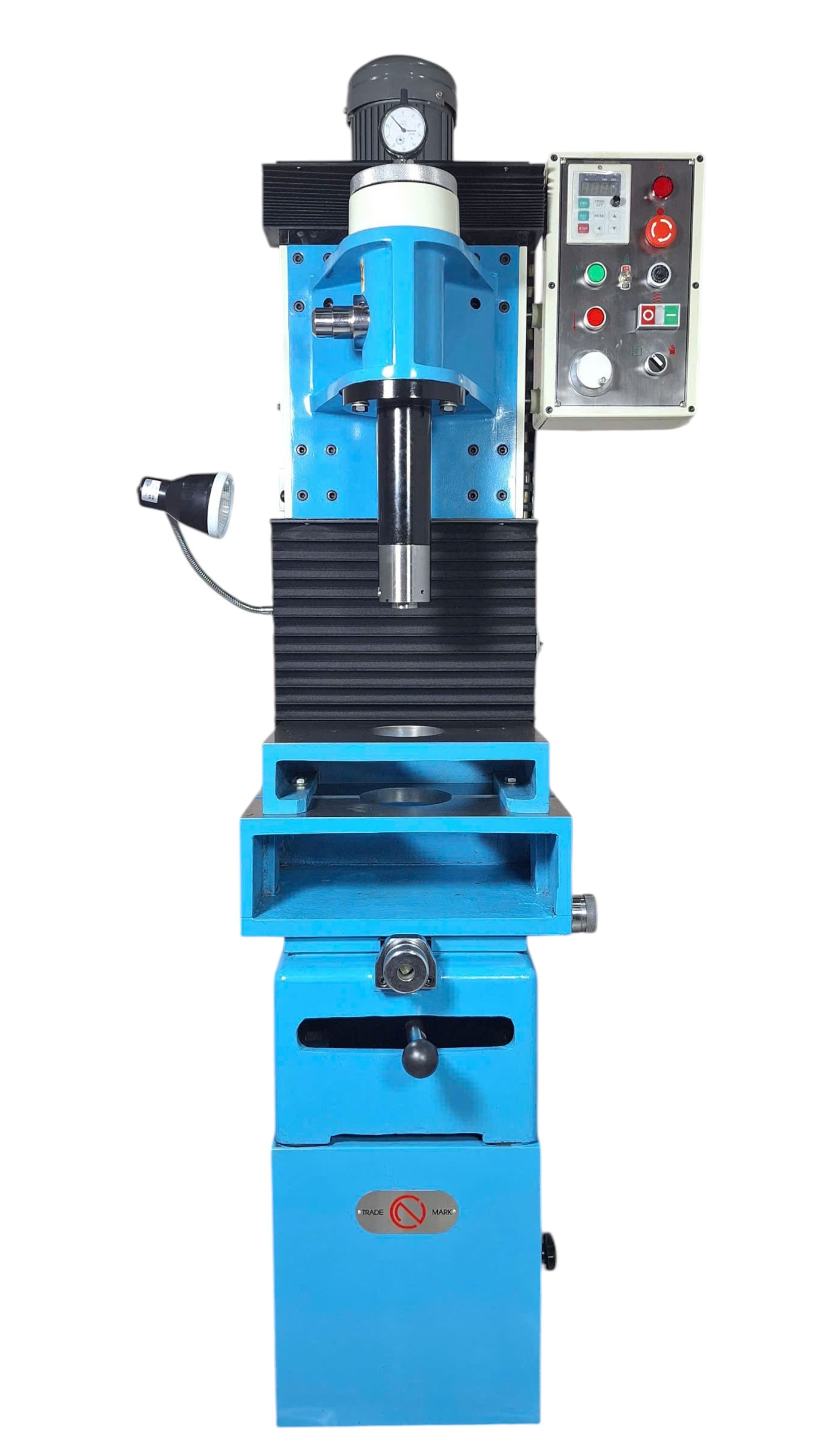

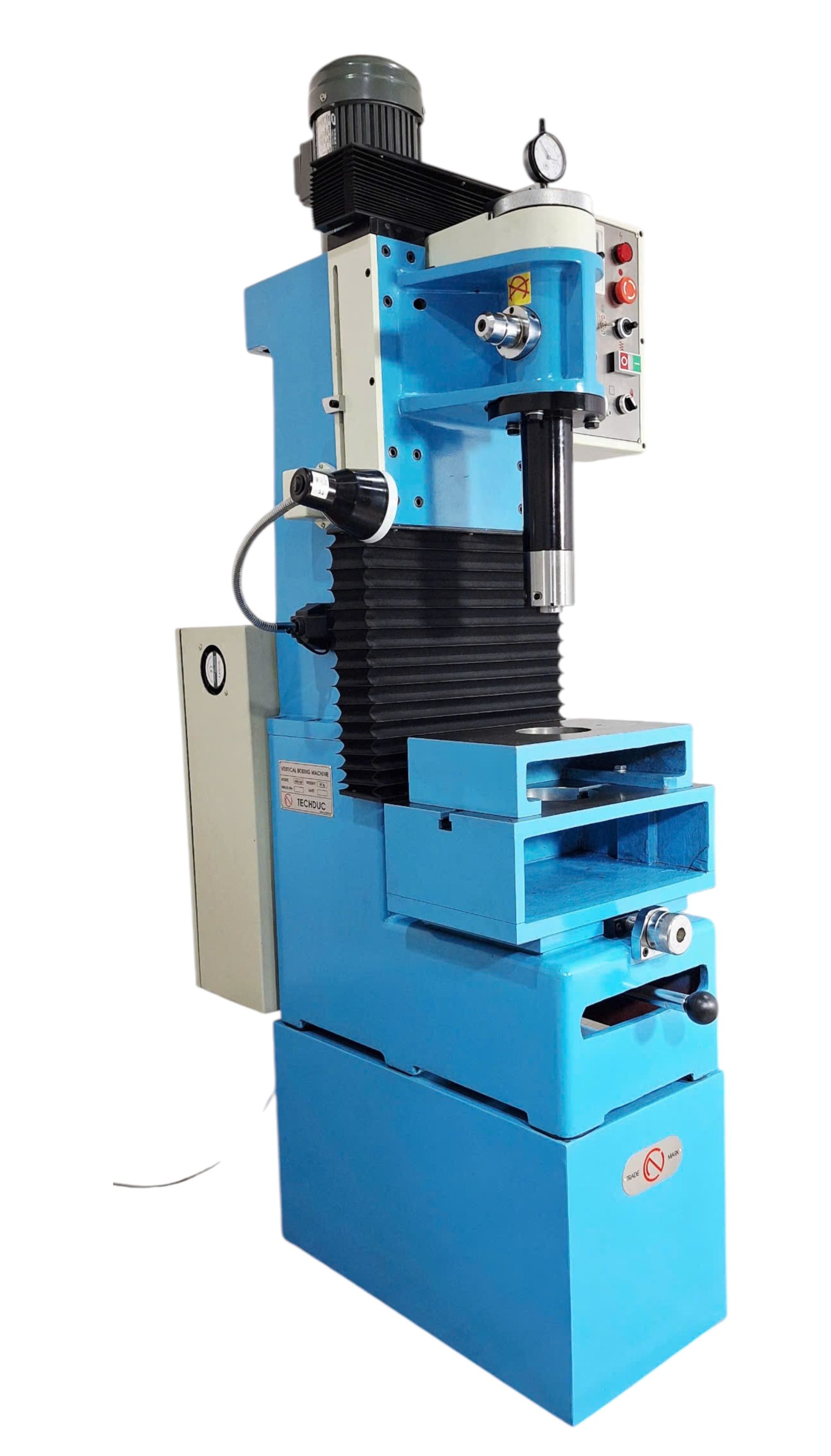

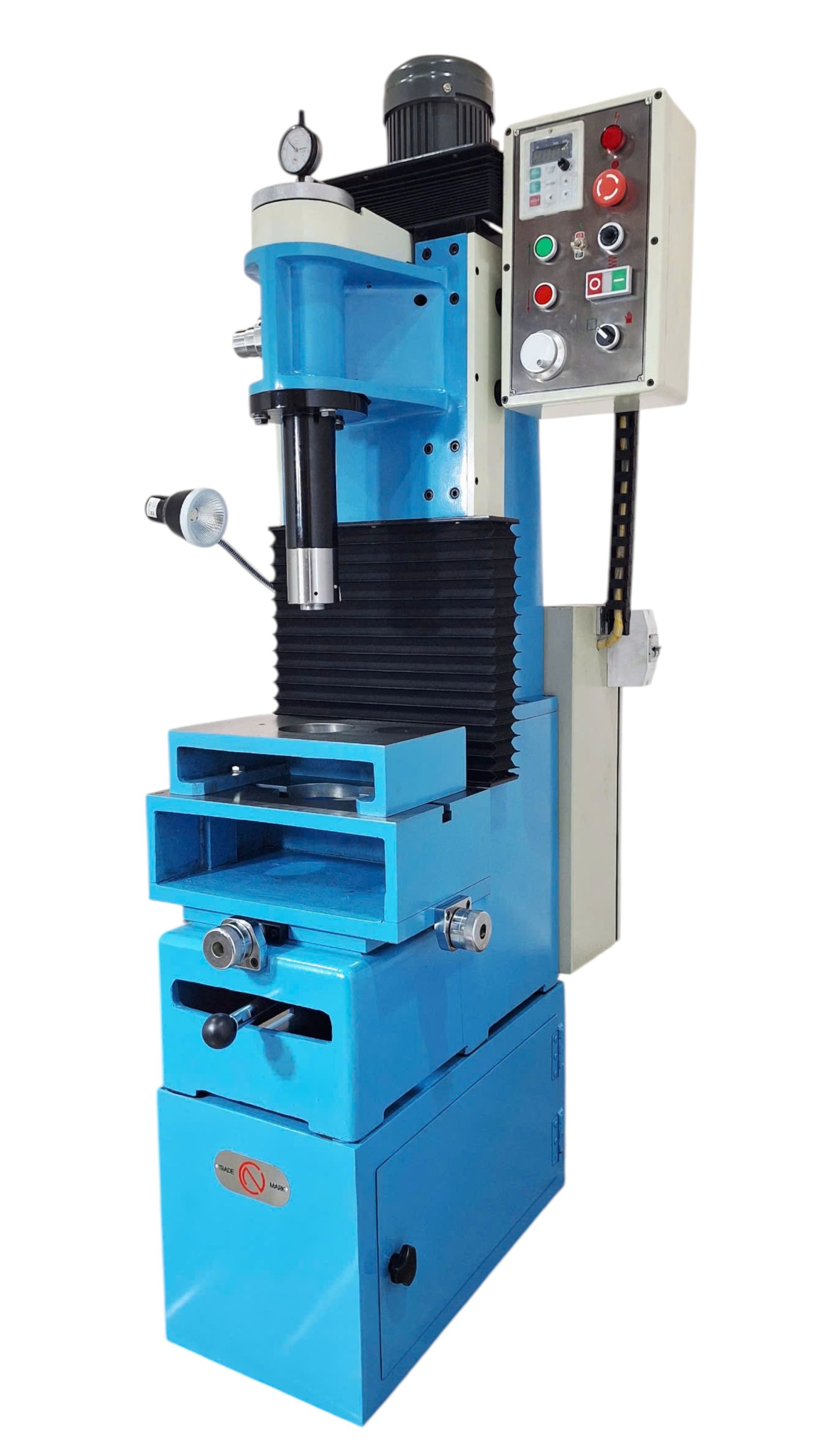

MACHINE FOR MOTORCYCLES
CYLINDER BORING VBM-250
INFORMATION
DIMENSIONS
| WEIGHT | PACKAGING size L x W x H |
| 397 Kg | 1200 x 800 x1800 mm |
SPECIFICATIONS

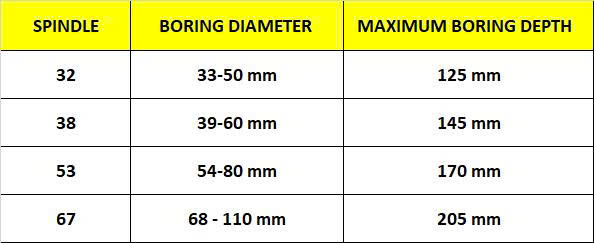

| Boring Diameter (32mm Shaft) | Boring Diameter (38mm Shaft) | Boring Diameter (53mm Shaft) | Boring Diameter (67mm Shaft) |
| 33 - 50 mm | 39 - 60 mm | 54 - 80 mm | 68 - 110 mm |
| Boring Depth (32mm Shaft) | Boring Depth (38mm Shaft) | Boring Depth (53mm Shaft) | Boring Depth (64mm Shaft) |
| 125 mm | 145 mm | 170 mm | 205 mm |
| Spindle Speed (Stepper) | Feed rate ( Stepper) | Vertical Travel (Boring head) | Machine table size |
| 30 - 600 RPM | 0.02 - 0.3 mm/REV | 250 mm | 390 x 240 mm |
