The Small Engine Boring Machine SB1-46 is the fastest and most efficient boring machine you can purchase to bore motorcycles and small engine cylinders
Simple setup combined with rapid and flexible operation make the SB1-46 a valuable investment for modern mechanics. Cylinder boring diameter can be operated from 46-80 mm. With rigid body and anti - vibration structure will allow up to 26mm of boring depth to be done in one minute.
SB1-46 will ensure the operator to obtain the surface finishing that meet the machining requirement.
FEATURES
- Replaceable insert cutting tools
- Automatic upper and lower feed rate
- Rapid upper feed stop is available
- Chrome plated boring spindle

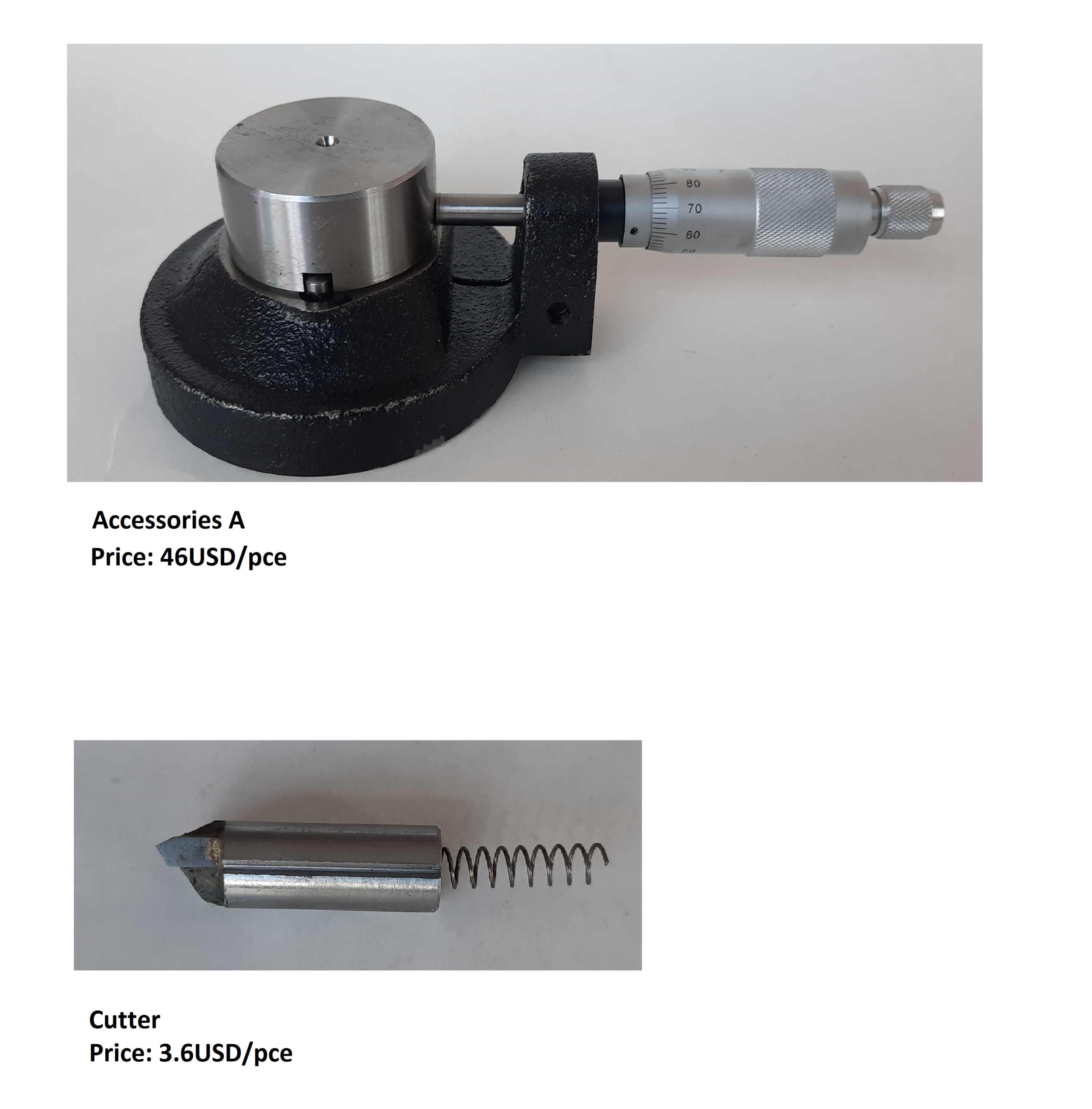

- Replaceable accessories are provided
Boring Diameter | Maximum Boring Depth | Spindle Speed | Feed Rate | Motor |
47-80mm | 180mm | 520 rpm | 0.05 mm/ rev | 1/2Hp-1Pha -220V |
Dimensions | Weight |
350x400x1200mm | 115Kg |
